commit ced17feca631f6963a2439f41ef09a7db048f316 (HEAD -> main)
Author: Vincent Li <vincent.mc.li@gmail.com>
Date: Mon Oct 20 21:28:17 2025 -0700
tc-basic-classifier: fix tcp port Endianess bug by AI
AI generated class_filter program stored the tcp port in network order,
but in bpf program the tcp port is converted to host order, and result in
tcp port lookup failure, unable to get the correct classid, fail to do rate
classification.
Signed-off-by: Vincent Li <vincent.mc.li@gmail.com>
commit a18fe4be0374ab1efb21c1228a5c5790ded7636e
Author: Vincent Li <vincent.mc.li@gmail.com>
Date: Mon Oct 20 19:15:34 2025 -0700
tc-basic-classifier: classify port and IP from bpf map
add port and IP rate classification based on bpf map so user could
add or remove port/IP rate classification dynamically at run time
since TC class works on egress direction, so port rate classification
works on red0 egress, and IP rate classification works on green0 egress
port rate classification:
class_filter -a -b ./class_filter.bpf.o -i red0 -v
class_filter -i red0 --add-port 8080:10:80mbit
class_filter -i red0 --add-port 8081:20:40mbit
class_filter -i red0 --delete-port 8080
class_filter -i red0 --list-ports
IP rate classification:
class_filter -a -b ./class_filter.bpf.o -i green0 -v
class_filter -i red0 --add-ip 192.168.1.0/24:40:30mbit
class_filter -i red0 --delete-ip 192.168.1.0/24
class_filter -i red0 --list-ips
Signed-off-by: Vincent Li <vincent.mc.li@gmail.com>
commit 12280ef22ae49f75eda047144ed3e9dc0f73e04a
Author: Vincent Li <vincent.mc.li@gmail.com>
Date: Fri Oct 17 19:45:07 2025 -0700
tc-basic-classifier: add user space program
the bpf skel header is generated only if USER_TARGETS
is added in Makefile, so add a dummy user space program.
Signed-off-by: Vincent Li <vincent.mc.li@gmail.com>
commit fe5cc1814af4c995f61ec08708110deef7a65c45
Author: Vincent Li <vincent.mc.li@gmail.com>
Date: Fri Oct 17 19:28:45 2025 -0700
xdp-tools: rebase on upstream xdp-tools main branch
Signed-off-by: Vincent Li <vincent.mc.li@gmail.com>
commit 7dee7fd954c06a3c58bedbb5561b9ee65c3f749f
Author: Vincent Li <vincent.mc.li@gmail.com>
Date: Fri Oct 17 18:39:59 2025 -0700
tc-basic-classifier: rename the class filter
Signed-off-by: Vincent Li <vincent.mc.li@gmail.com>
Signed-off-by: Vincent Li <vincent.mc.li@gmail.com>
BPFire - eBPF Network Firewall OS (eBPF 网络防火墙）
What is BPFire?
BPFire is fork of IPFire 2.x, a hardened, versatile, state-of-the-art Open Source firewall based on Linux. BPFire is to enable revolutionary eBPF technology for non-tech savvy users, make eBPF technology consumable to home users or any size of organizations to secure their network environment. Current supported eBPF network application features:
BPFire 基于IPFire 2.x, 一个基于Linux的安全坚固、多功能、先进的开源防火墙. BPFire 为普罗大众带来革命创新性的eBPF技术，为家庭用户或任何大小组织企业的网络安全保驾护航. 当前支持的eBPF应用包括：
- XDP DDoS protection, See XDP SYNPROXY stops 10G DDoS SYN flood here
- XDP UDP DDoS online game protection
- XDP DNS domain blocklist, ratelimit protection
- XDP SSL/TLS server name indicator (SNI) blocklist
- XDP GeoIP/Country blocklist
- XDP multi attachment and capture mode for Intrusion Detection System Suricata in IPS mode
- eBPF based LoxiLB load balancer, Firewall, Proxy, see full features LoxiLB
Where can I get support?
Open github issue or discord
Where can I get BPFire installation ISO or LoongFire flash image?
中国大陆用户下载地址:
Other download site:
What computer hardwares BPFire support?
BPFire support commodity computer hardware, small or large, old or new, cheap or expensive.
for example:
How do I install BPFire?
flash the ISO to USB on Linux machine, /dev/sdc is your USB thrumb drive.
dd if=bpfire-2.29-core184-x86_64.iso of=/dev/sdc status=progress
BPFire installation on mini industrial PC:
BPFire SYNPROXY throughput with and without XDP acceleration under 10Gbit DDoS SYN flood:

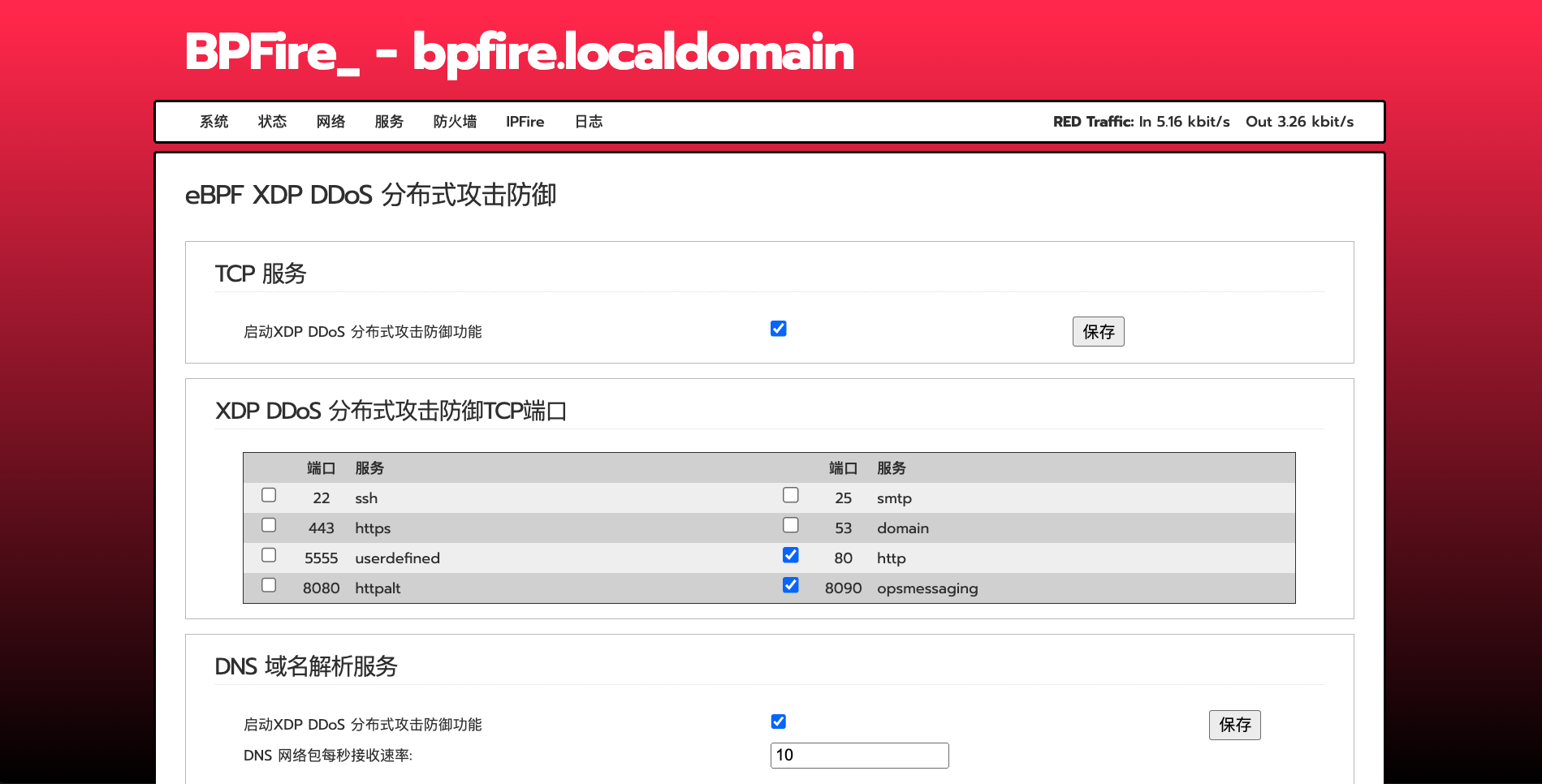

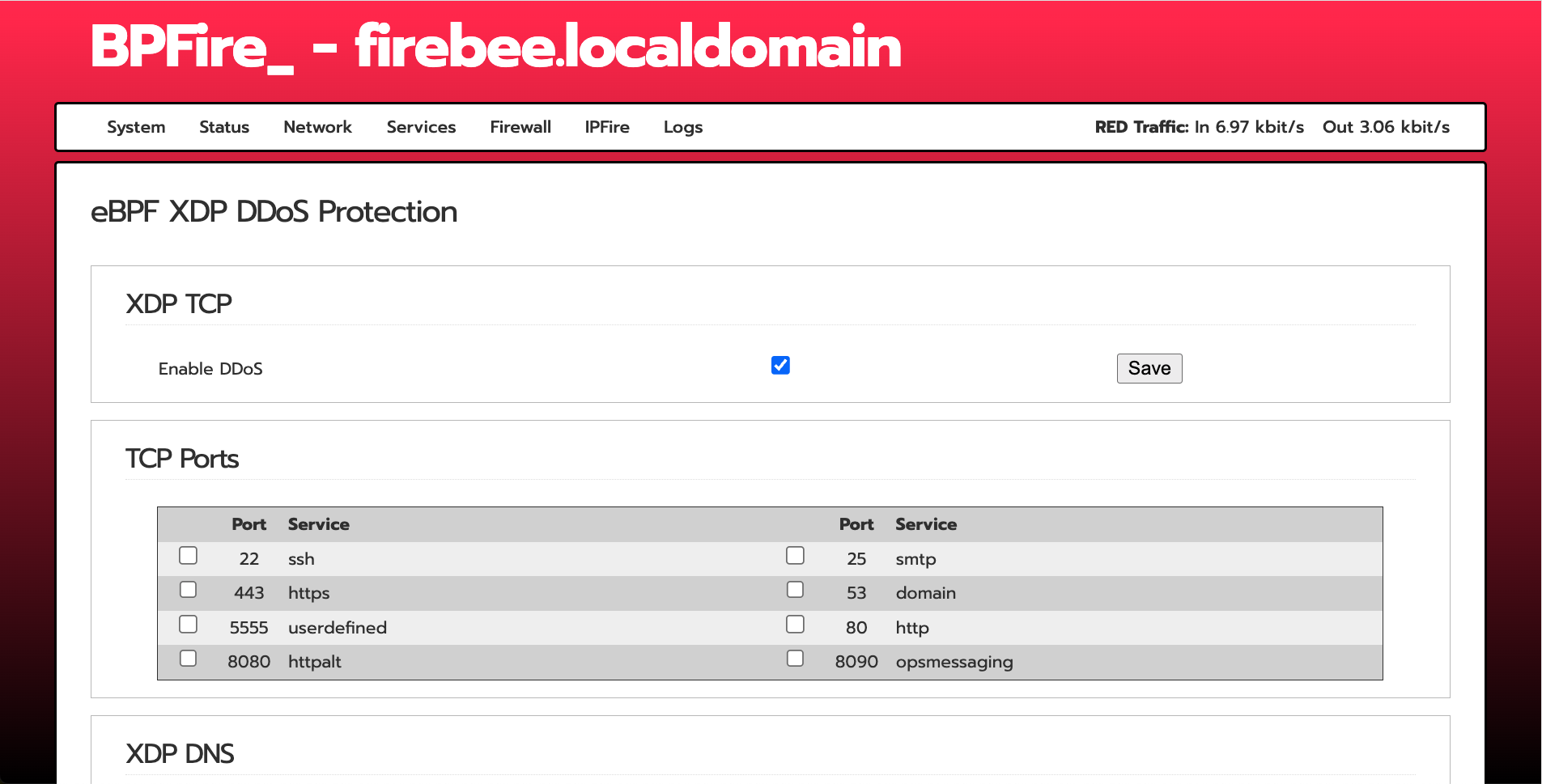

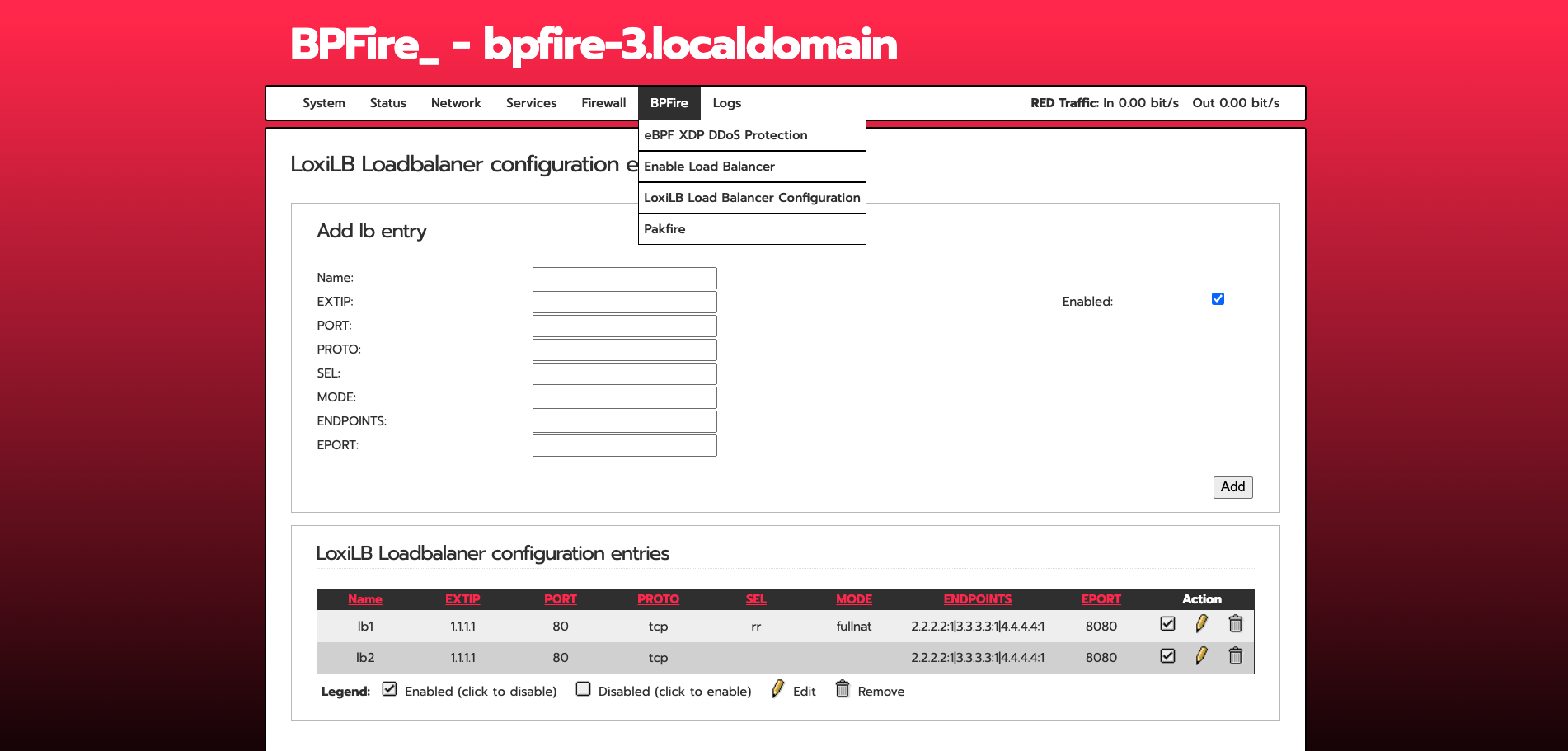

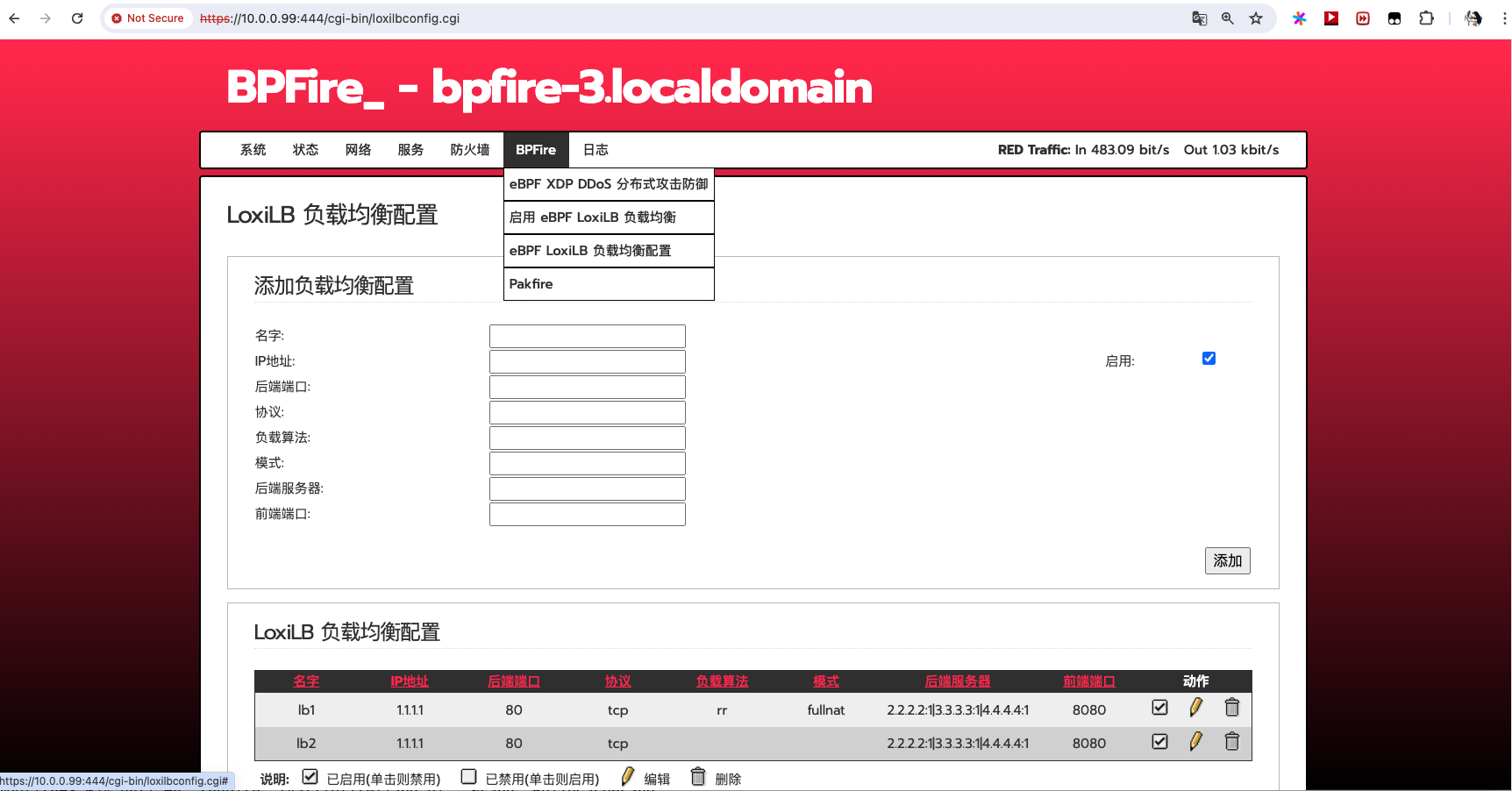

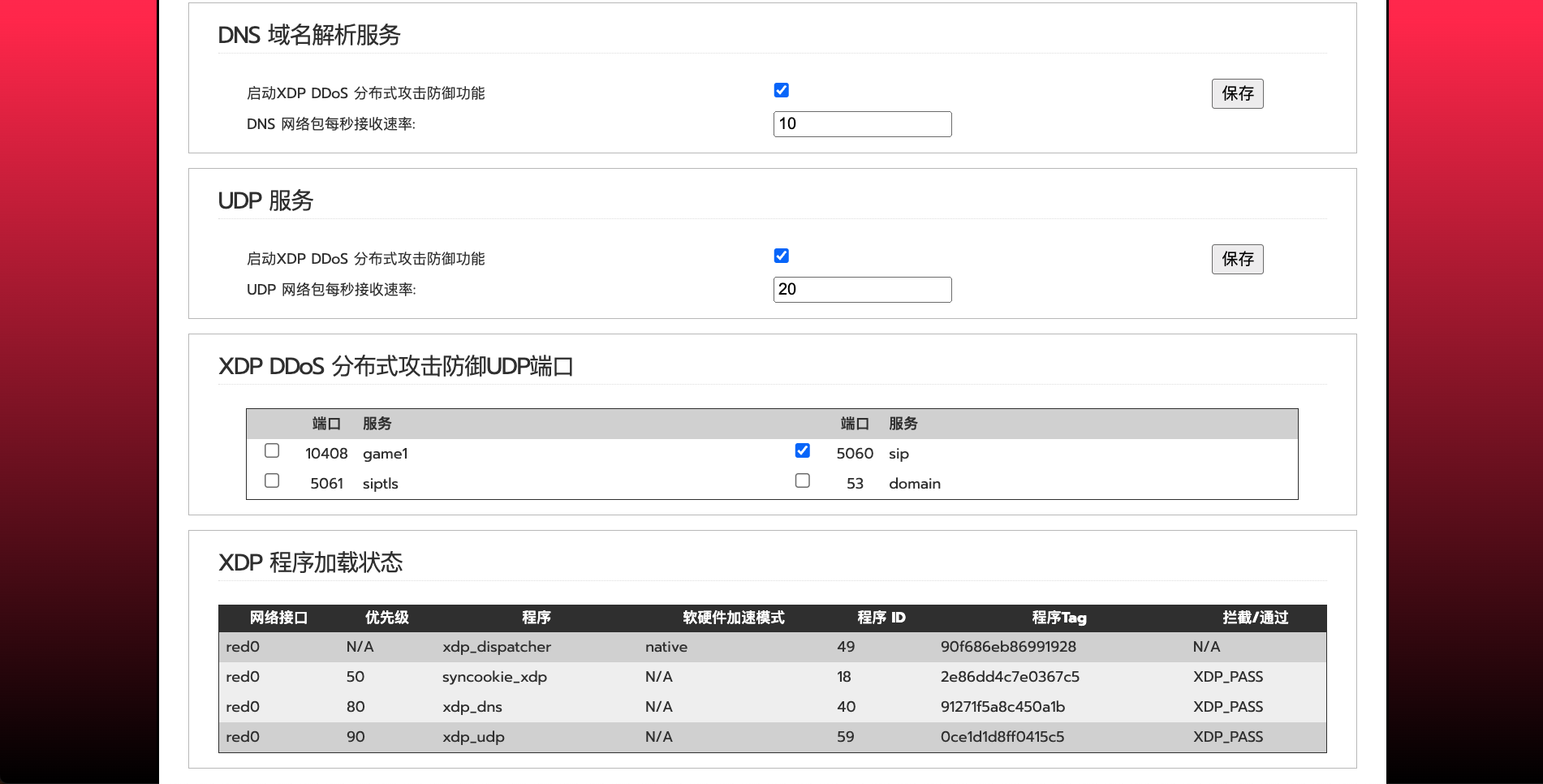

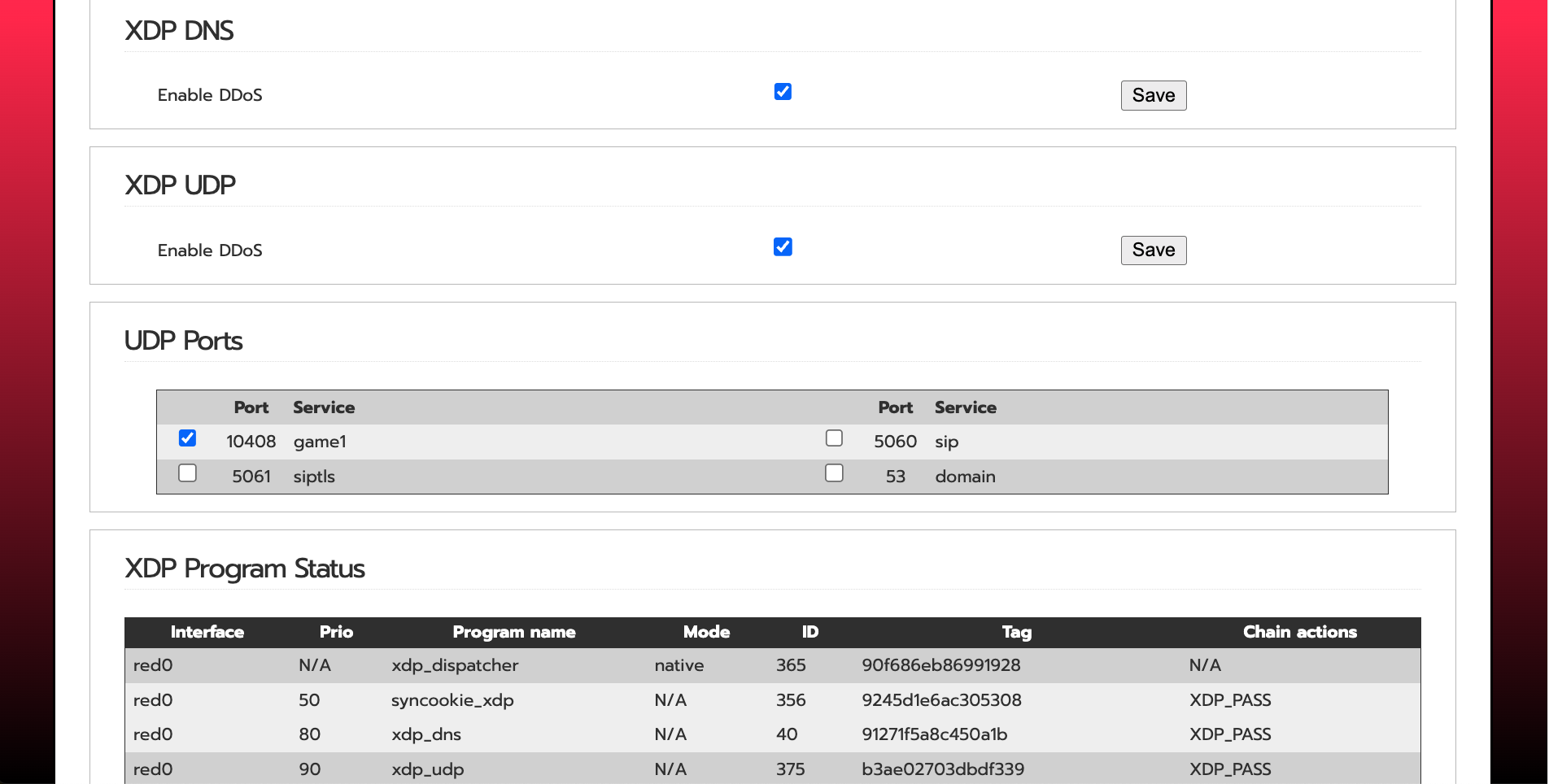

BPFire WebUI screenshot:
English:
Chinese:
Does BPFire run in hypervisor virtual environment?
Yes, We have tested in Linux KVM hypervisor, Proxmox, Microsoft Hyper-v, should support Virtualbox, VMware as well.
Microsoft Hyper-v screen shot:
How to build BPFire?
Build Environment Setup https://www.ipfire.org/docs/devel/ipfire-2-x/build-initial
(It takes a few hours to build image for first build depending on build machine power)
for example on Ubuntu 22.04 LTS:
apt install git-core g++ manpages-pl patch byacc make autoconf automake libltdl-dev
git clone https://github.com/vincentmli/bpfire.git
cd bpfire
wget --mirror --convert-links --adjust-extension --page-requisites --no-parent --cut-dirs=2 -nH --reject "index.html*" --reject "*.gif" https://www.bpfire.net/download/bpfire/cache/
./make.sh build
How do I support BPFire development?
Join or Donate to BPFire paypal
